Spare Parts

SPECIFICATIONS

• Type: Cooler Cooling Fan
• Size: 40mm (L) x 40mm (W) x 10mm (H)
• Material: ABSConnector: 2 Pin
• Clable length approx 30 cm
• Operating Voltage: DC 12V
• Colour : Black

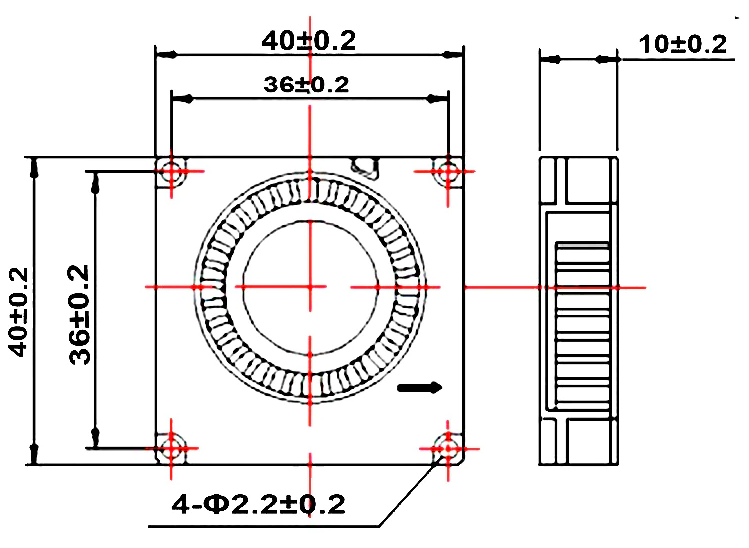

4010 Blower

Dimension 40x40x10MM

Voltage 24V

Wire length 1200mm /120cm

4010 Blower

Dimension 40x40x10MM

Voltage 12V

Wire length 1200mm /120cm

Heat Cartridge

Voltage : 12V DC

Power : 40 W

Cable length : 200 cm / 2000mm

• Switch power supply, convert AC 110V/220V to DC 12V 30A 360W.
• Dual input voltage: AC 110V/220V. There is a switch, choose the proper voltage before use.
• Protection: Shortage Protection, Overload Protection, Over-voltage Protection:115%-135%,Action output cut-off Reset:Auto Reset or fuse.
• Smart device surge protection for Shortage Protection, Overload Protection, Over Voltage Protection
• Wide input voltage range, steady and precise output voltage.Great power transformer for electronic equipment, Led Lighting, home appliance etc.

1. A simple steps and direction control interface

2 six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step

3 CAN interface directly with 3.3 V and 5 V systems

4 Over-temperature thermal shutdown, overcurrent shutdown, under-voltage lockout

5 short to ground short circuit load protection

6 4 Layer 2 oz copper PCB, in order to improve heat dissipation

7 exposed solder ground below the bottom of the driver IC on the printed circuit board pad

8 module size, pin and interface matching A4988 stepper motor driver operators in many ways

9 adjustable current control lets you set a potentiometer, which lets you use the stepper motor's rated voltage or more, in order to achieve a higher rate of maximum output current step

10 Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)

11 Maximum 45 V supply voltage

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.

The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.

The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six micro-step resolutions (down to 1/32-step).

It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

Heat Sink already fitted
