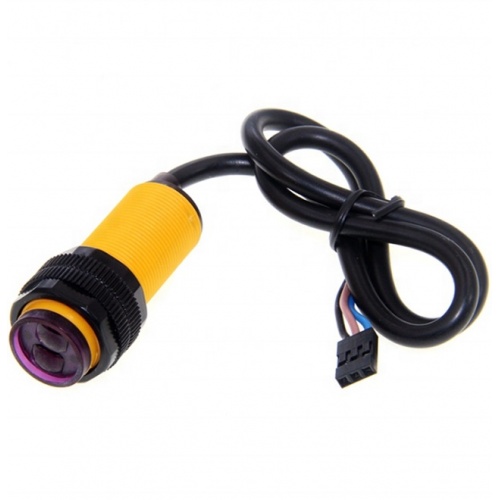

Infrared Obstacle Avoidance Sensor

Rs 350
Qty:
Print
Diameter: 17MM
Sensor length: 45MM
Lead Length: 45CM

Technical parameters of photoelectric switch E18:
1. Output current DC/SCR/relay Control output: 100mA/5V power supply
2. Current consumption DC<25mA
3. Response time <2ms
4. Pointing angle: ≤15°, effective distance 3-80CM adjustable
5. Detection object: opaque body
6. Working environment temperature: -25℃~+55℃
7. Standard detection objects: sunlight below 10000LX incandescent lamp below 3000LX
8. Shell material: plastic
  • Model: E18-D80NK
