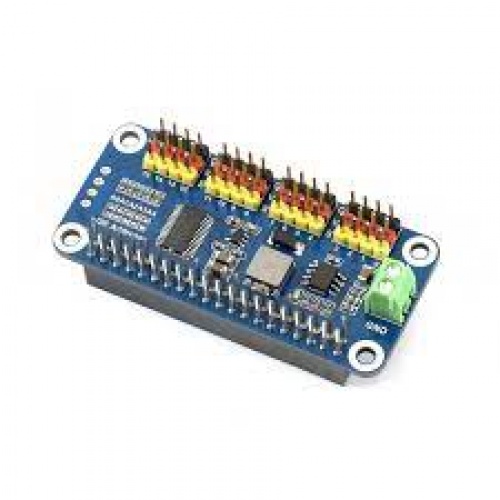

Servo Driver HAT for Raspberry Pi, 16-Channel, 12-bit, I2C

Overview

The Raspberry Pi is a powerful SBC, yet it can't provide PWM output.  Now this powerful HAT drives Servo motor  for you.

Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• I2C controlled, using only 2 pins
• Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

Specs

• Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: PCA9685
• Control interface: I2C
• Dimension: 65mm x 30mm
• Mounting hole size: 3.0mm

• Availability: 2 In Stock
• Model: Servo Driver HAT for Raspberry Pi, 16-Channel, 12-bit, I2C
