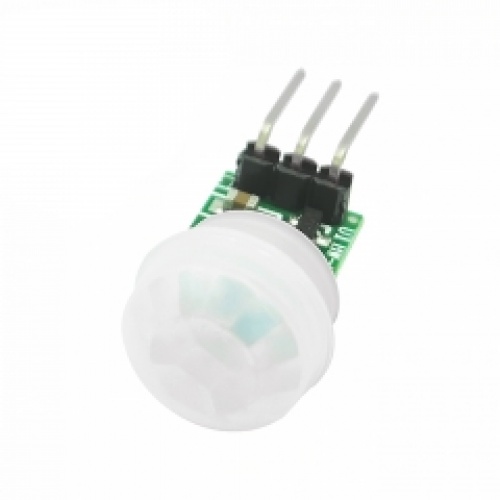

AM312 Mini PIR Infrared Human Motion Sensor
Rs 100
Specification:
Size: 40 x 10 x 13mm
Net weight: 2g
Technical parameters:
1. Operating Voltage Range: DC4.5-20V
2. Static current: <60uA
3. Output level: High 3.3V / Low 0V
4. Trigger: repeatable trigger (default)
5. Delay time: Default 8S + -30%
6. PCB Dimensions: 10 x 23mm
7. Induction angle: <100 degree cone angle
8. Induction distance: 3 meters
9. Working temperature: -20 - +80 degrees
10. Sensor Lens Dimensions: Diameter: 10mm (default)
- Model: AM312
